2023All Mountain
Sight A1 Gen 4
Grey/Copper
Bike details & specifications
The Sight A1 boosts your All-Mountain confidence with incredible descending capability, adept, sure-footed climbing, and efficient pedaling.
Frameset

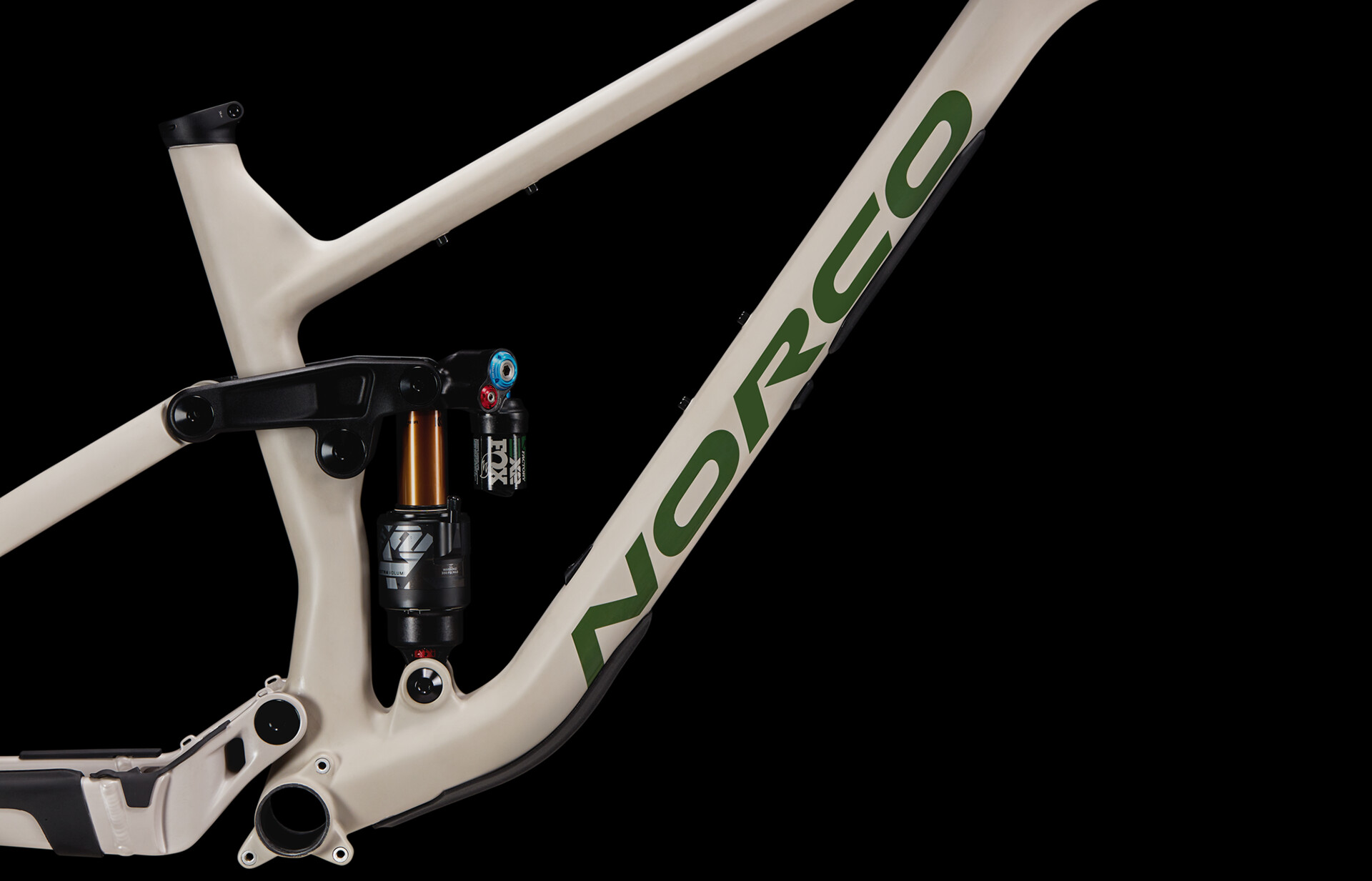

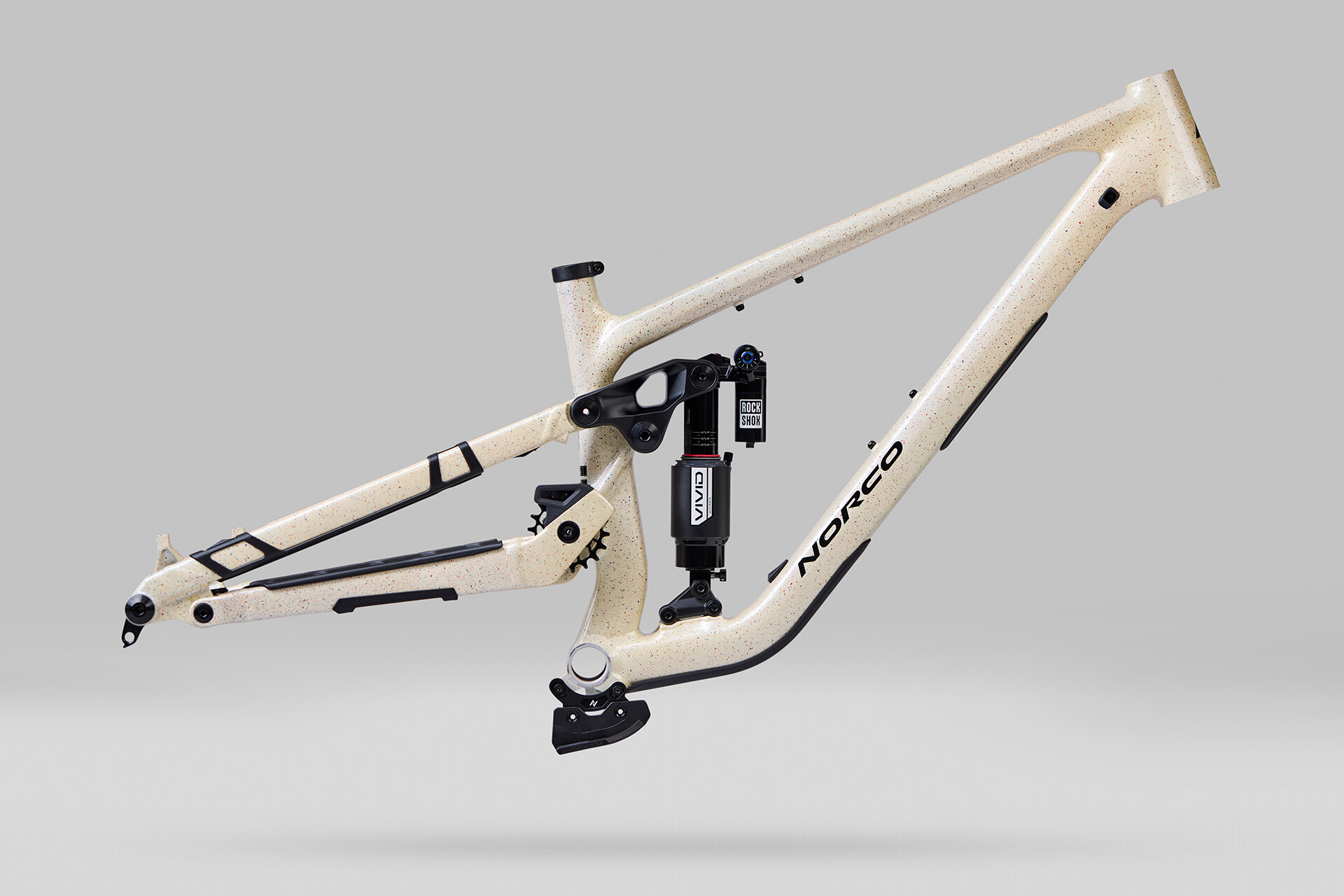

- Frame
- Aluminum All-Mountain, 150mm Travel, 27.5" and 29" Options, UDH, Ride Aligned™

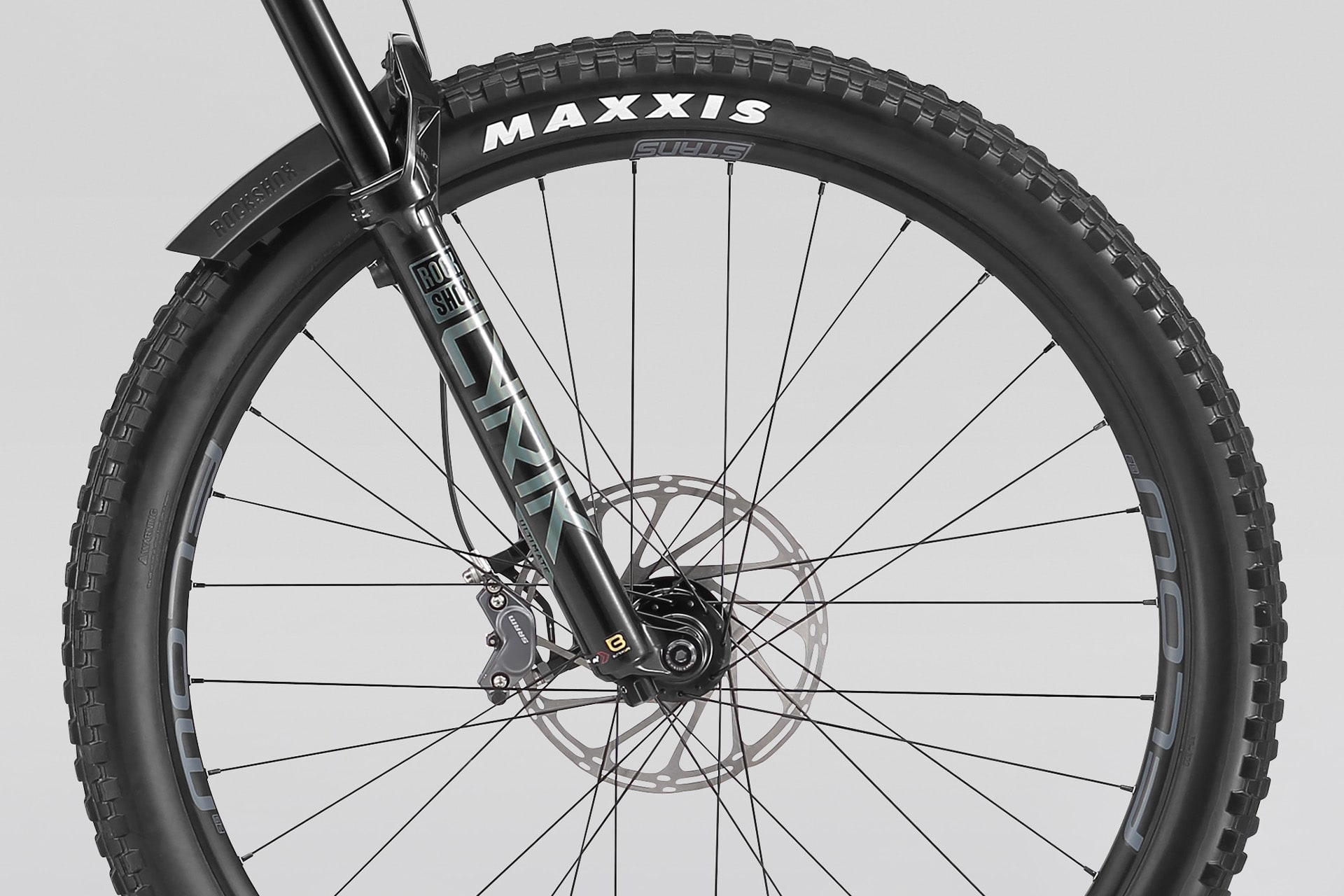

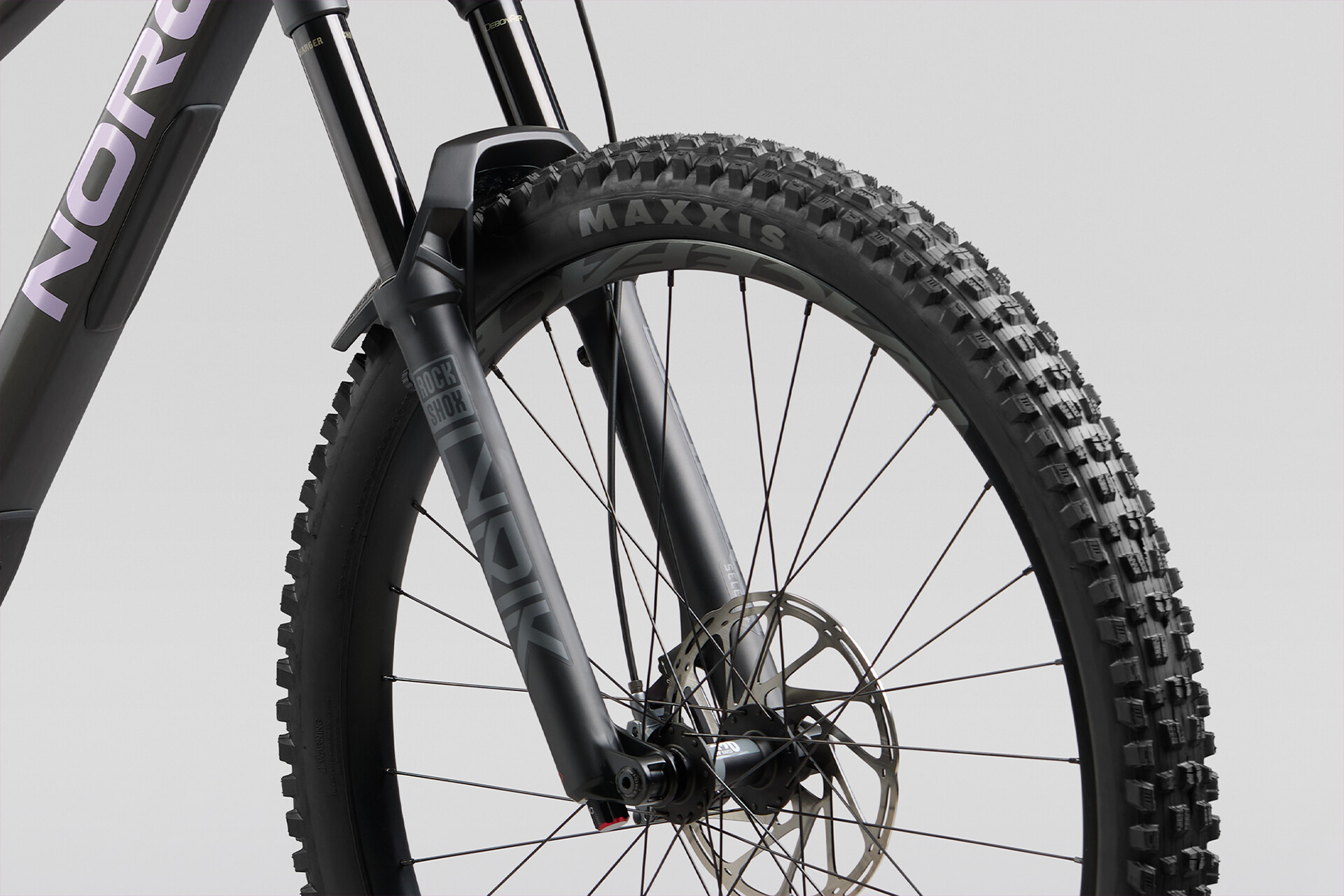

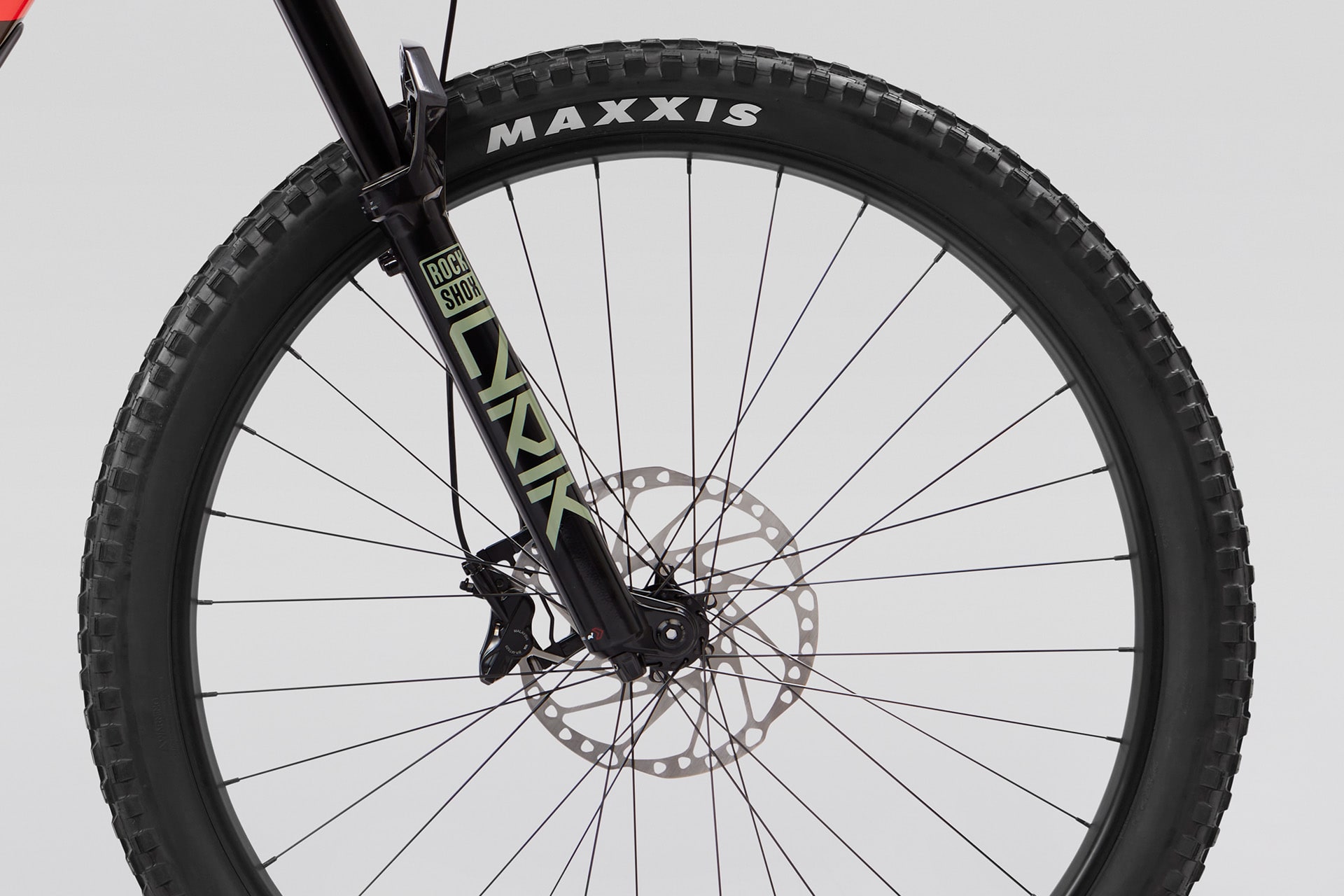

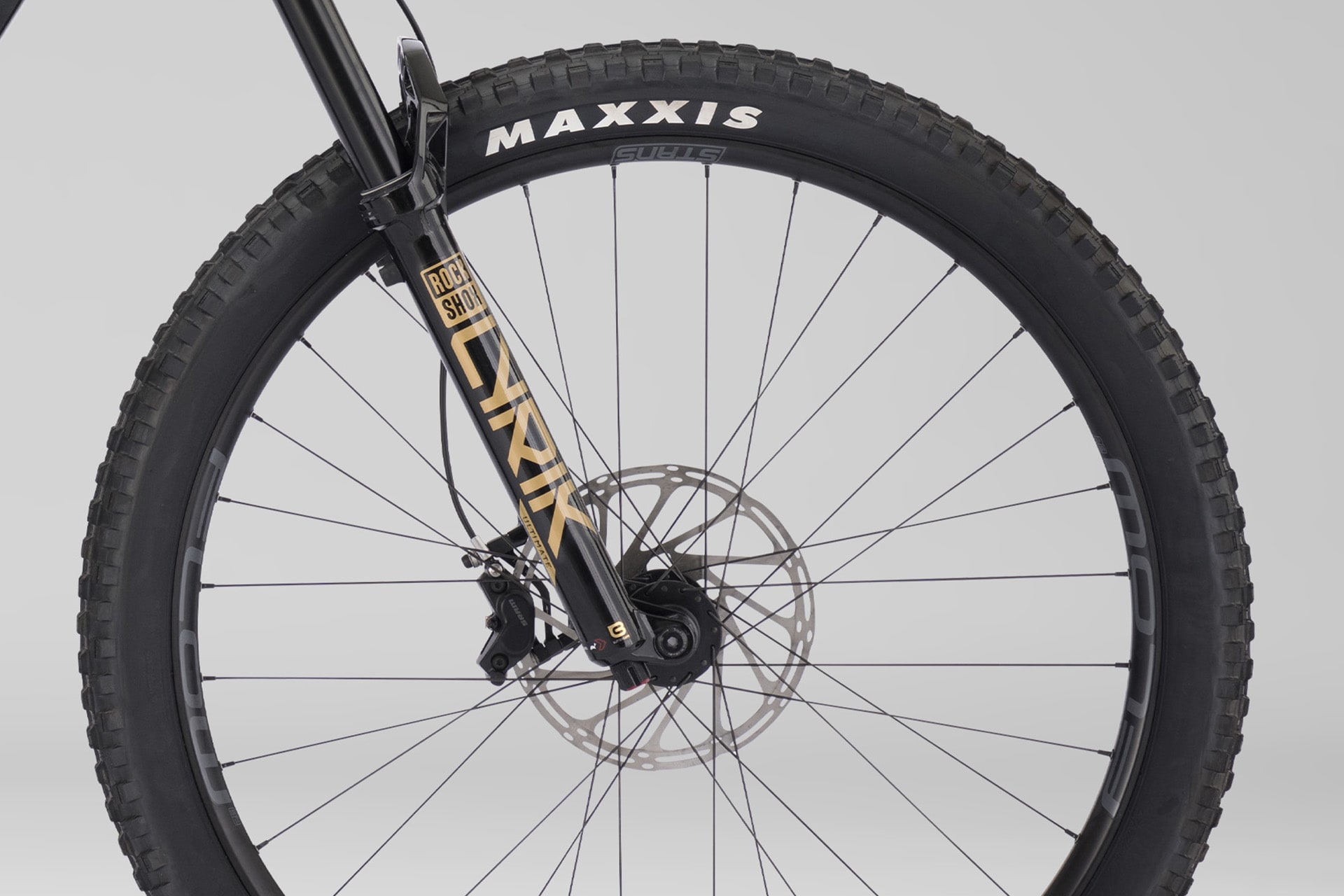

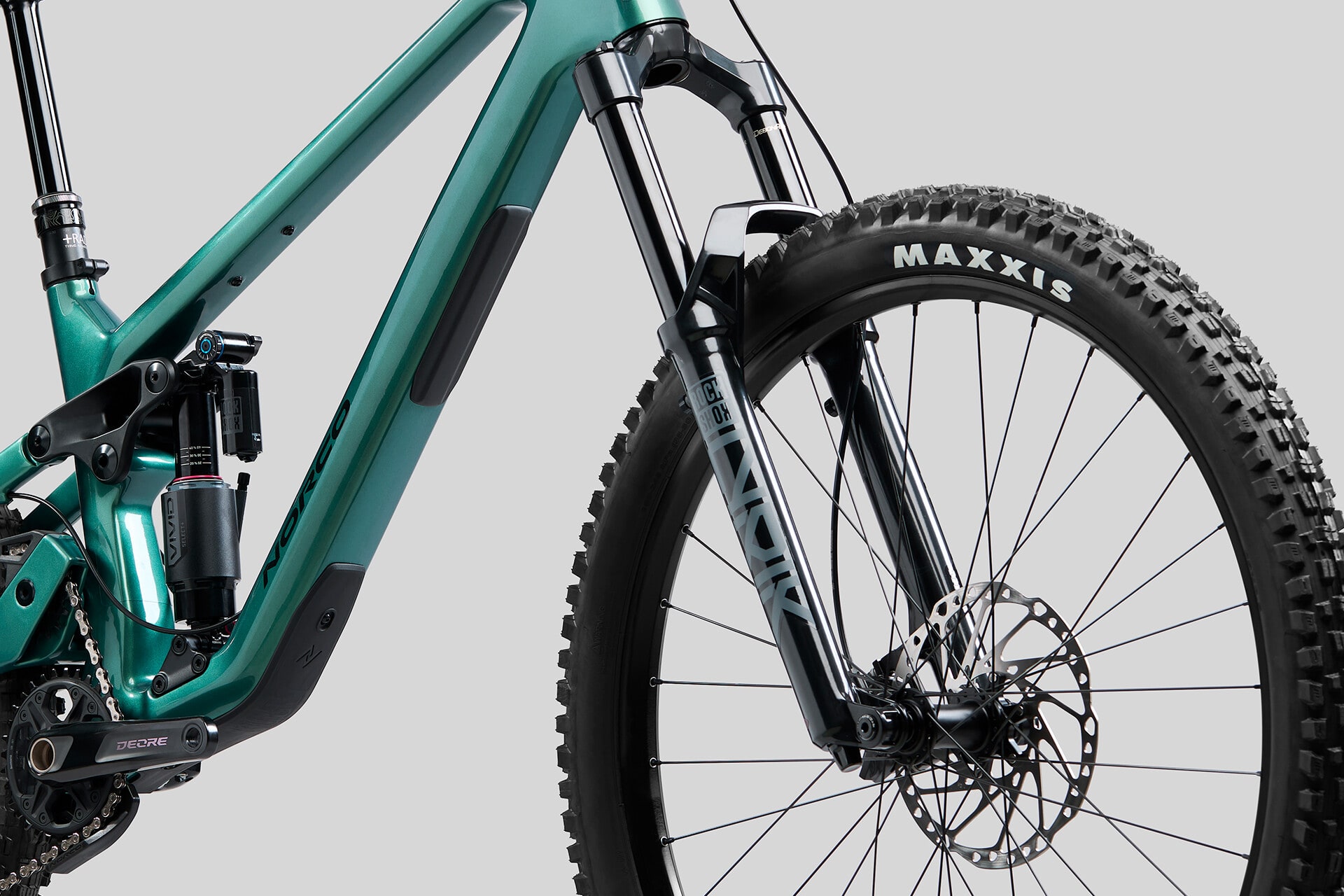

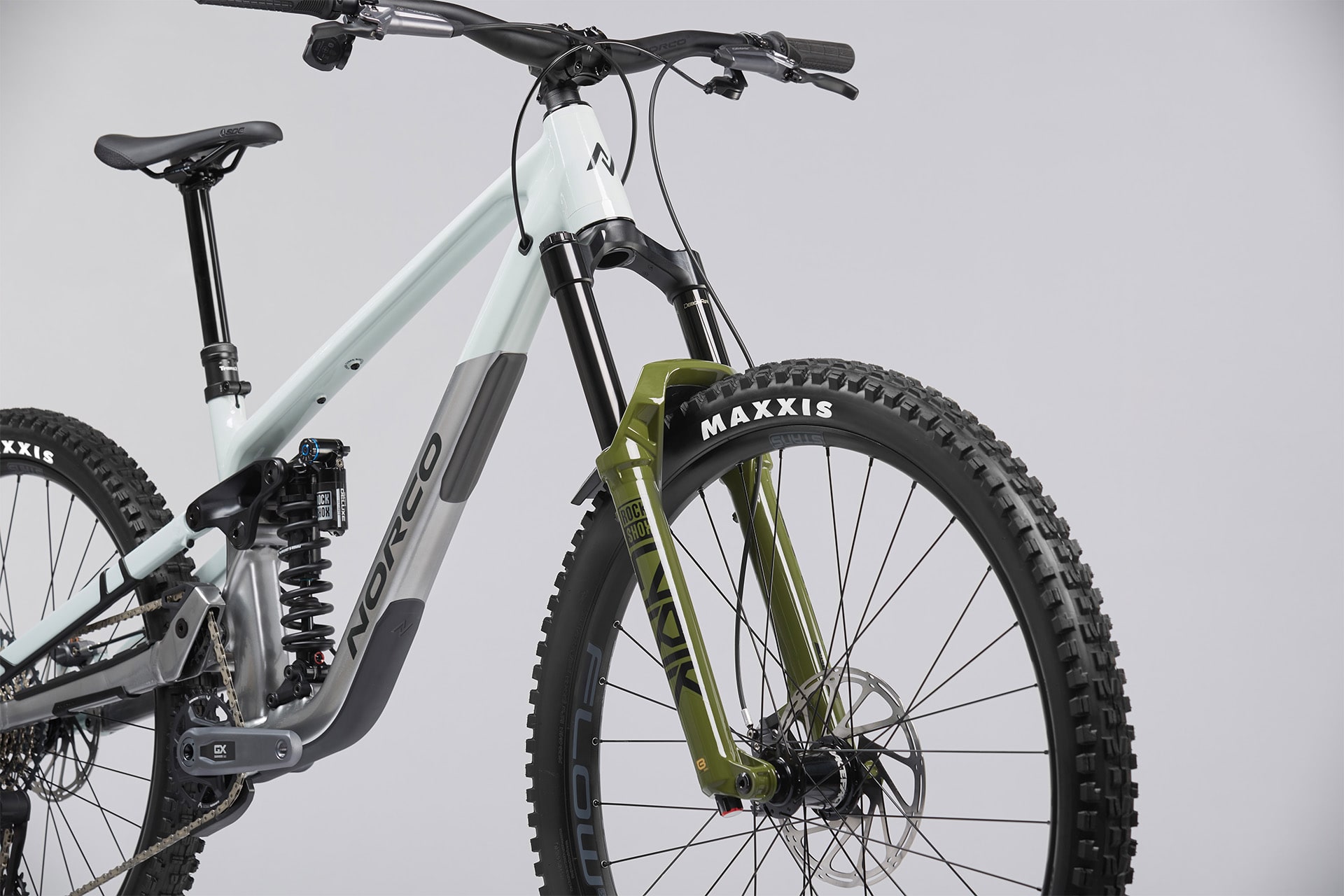

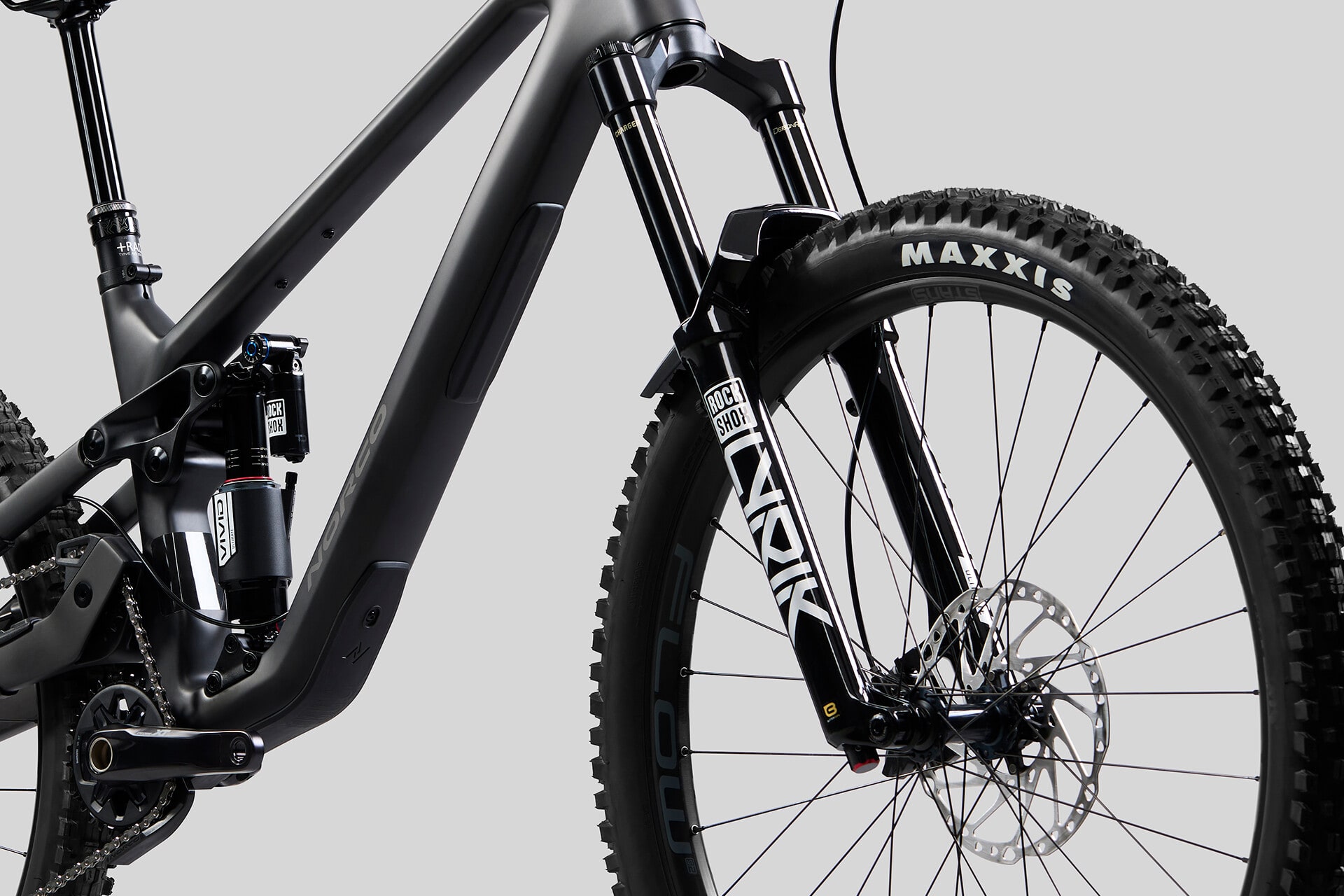

- Fork
- RockShox Lyrik Ultimate, Charger 2 RC2, 160mm, 37mm Offset (27.5), 44mm Offset (29)

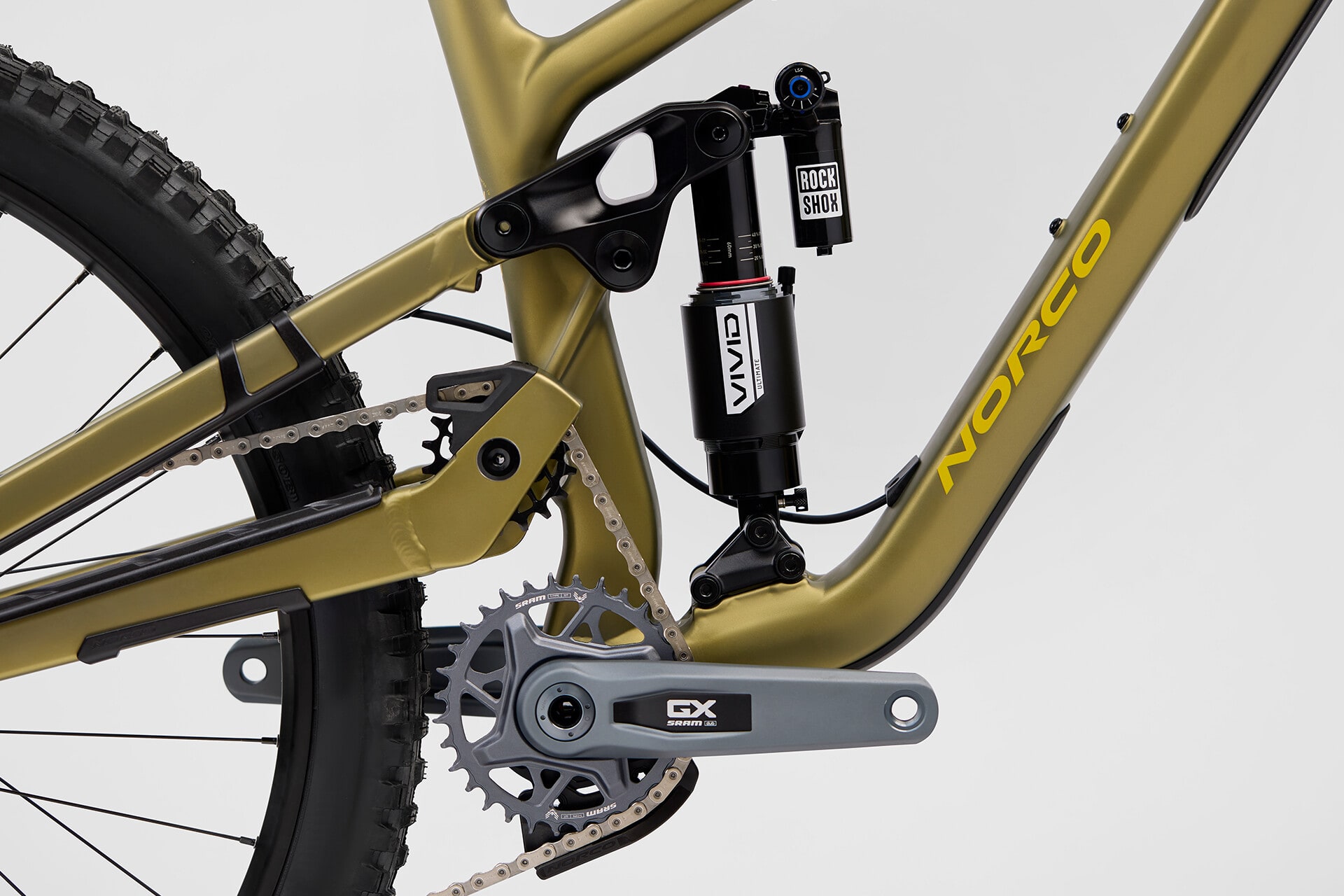

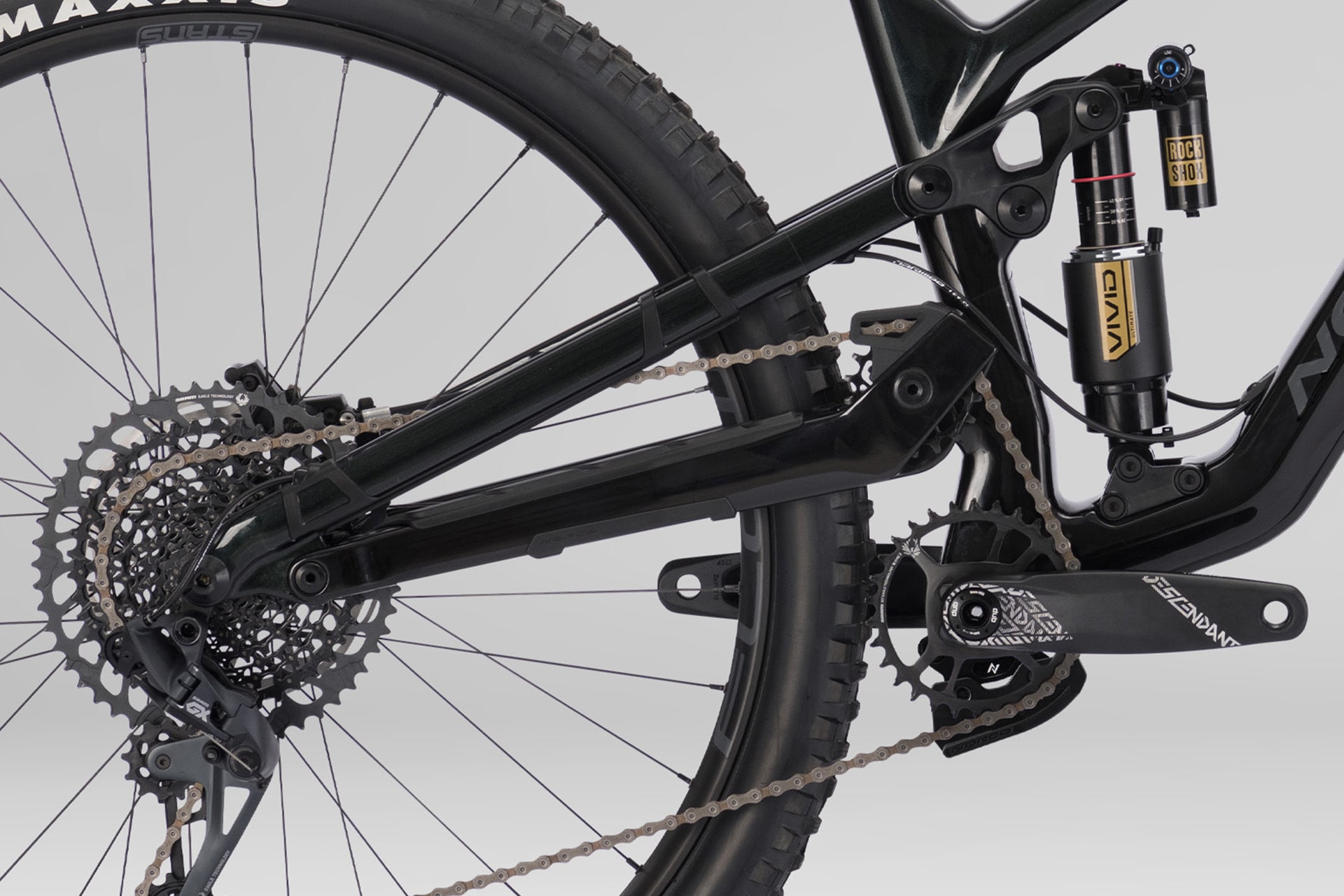

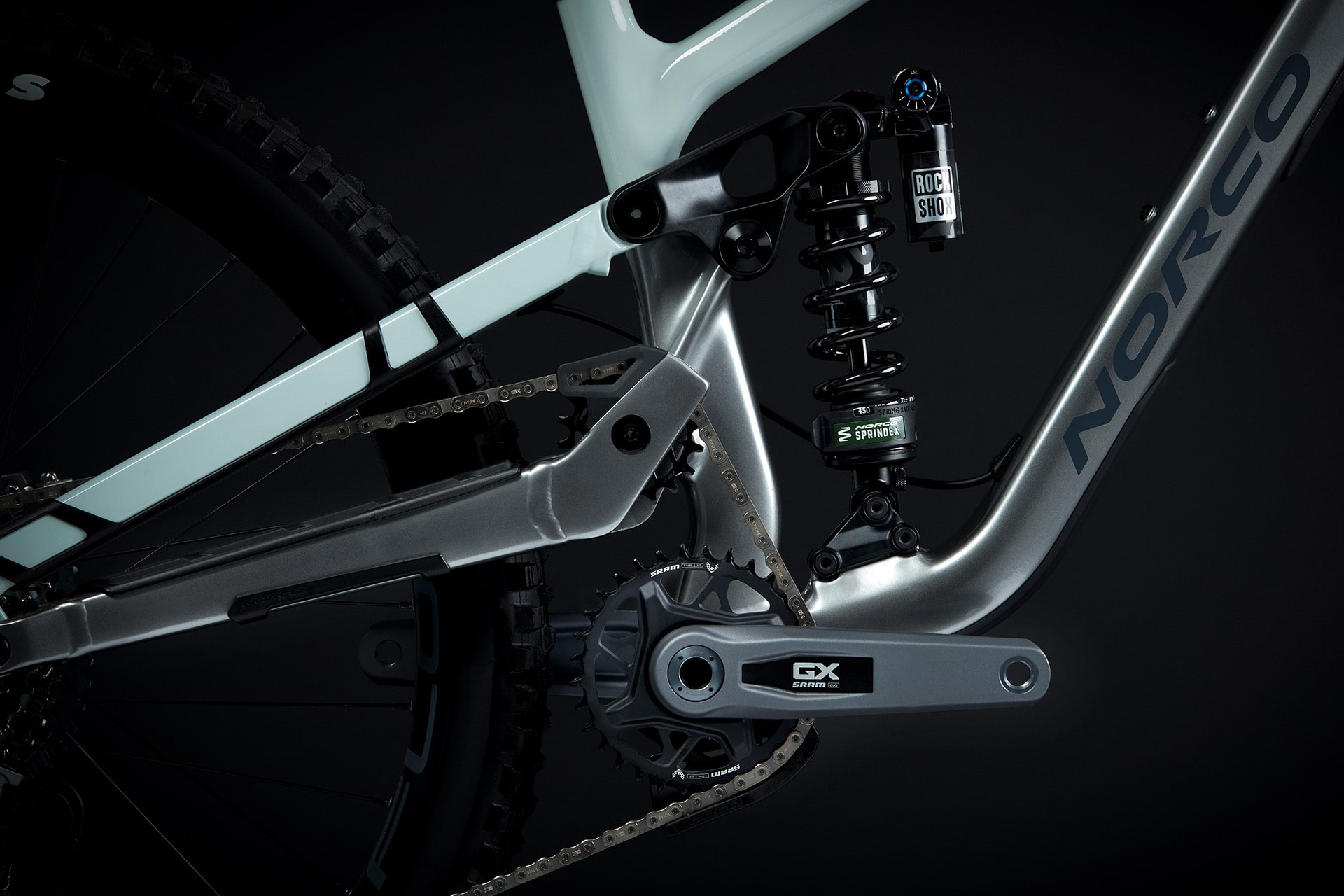

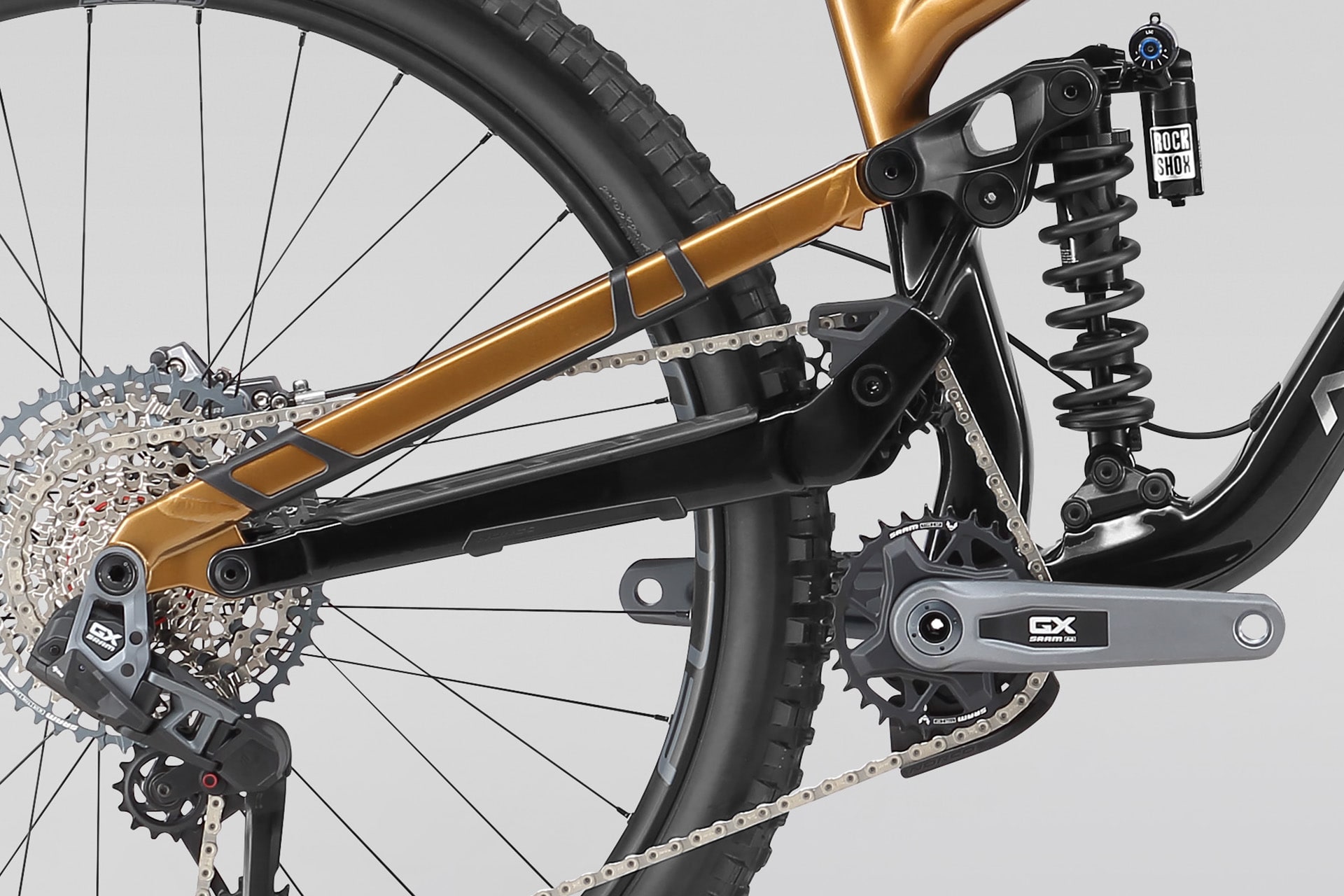

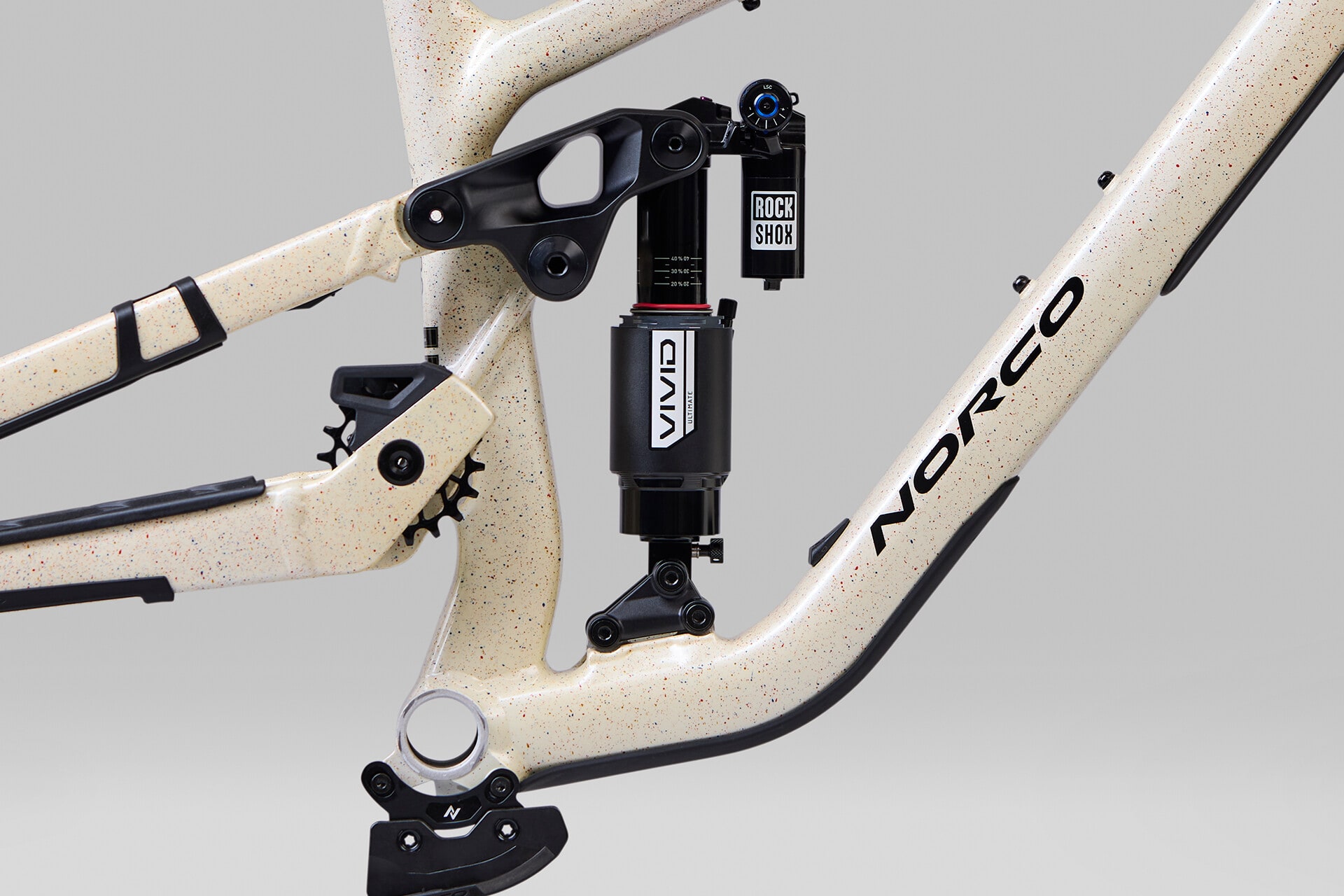

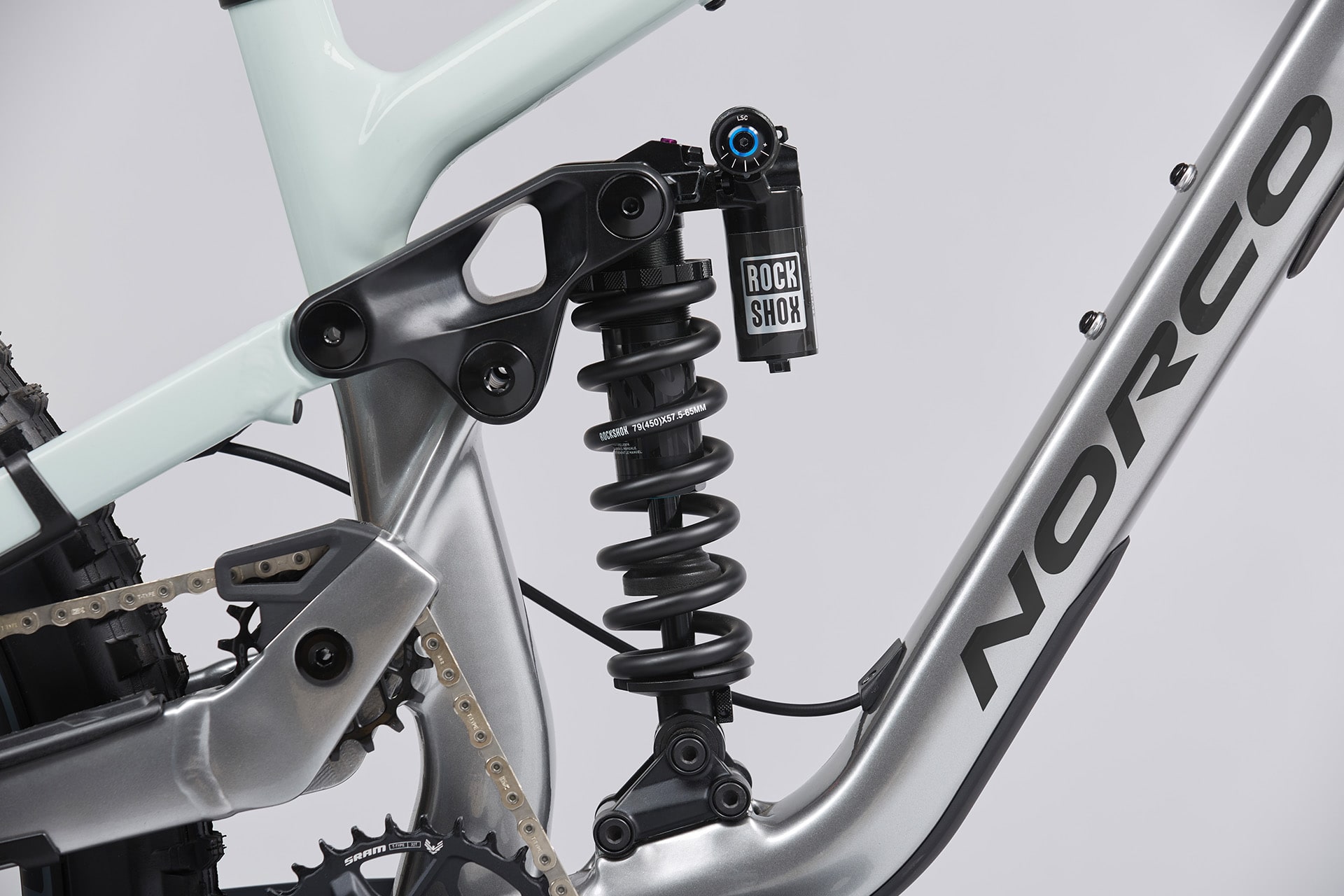

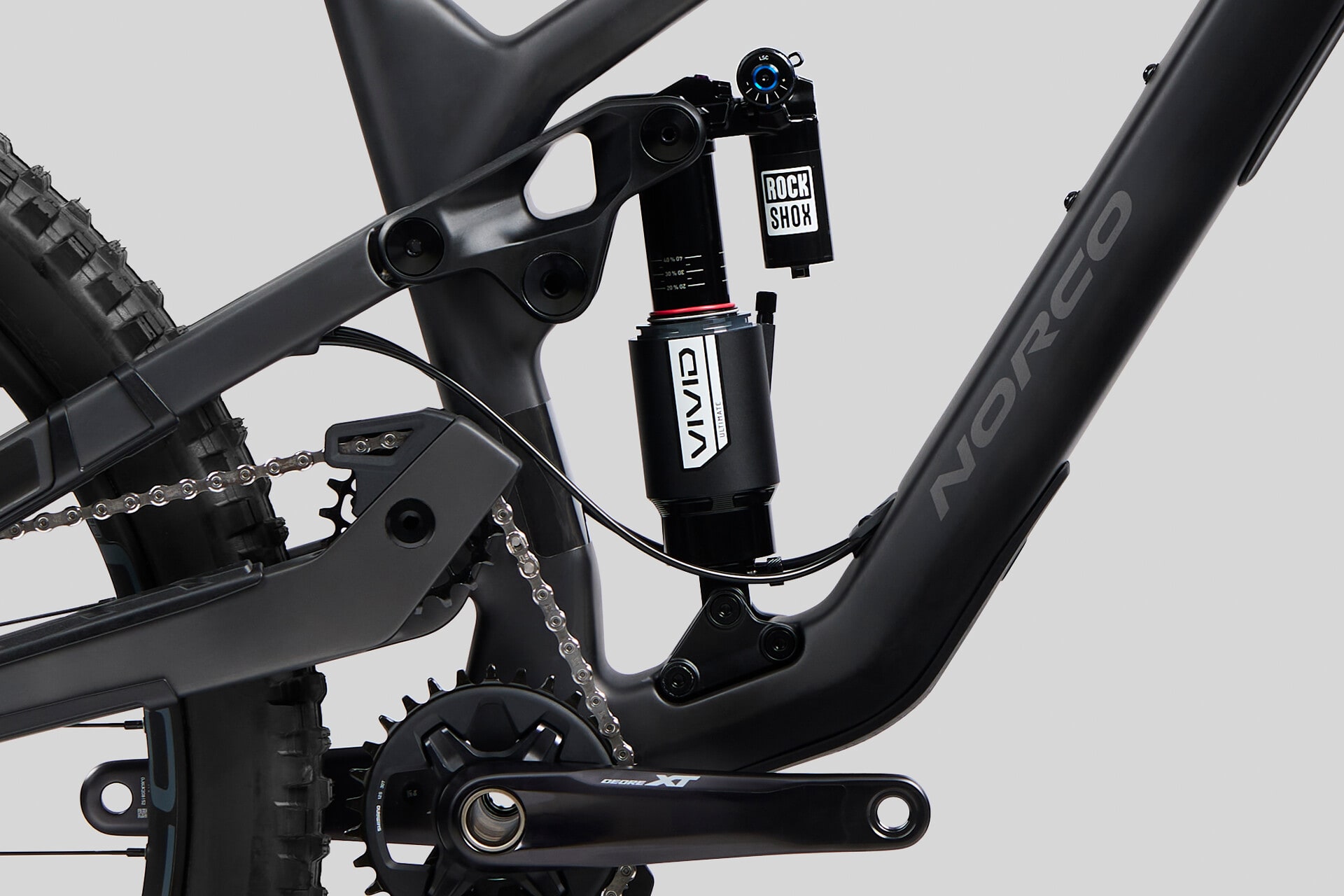

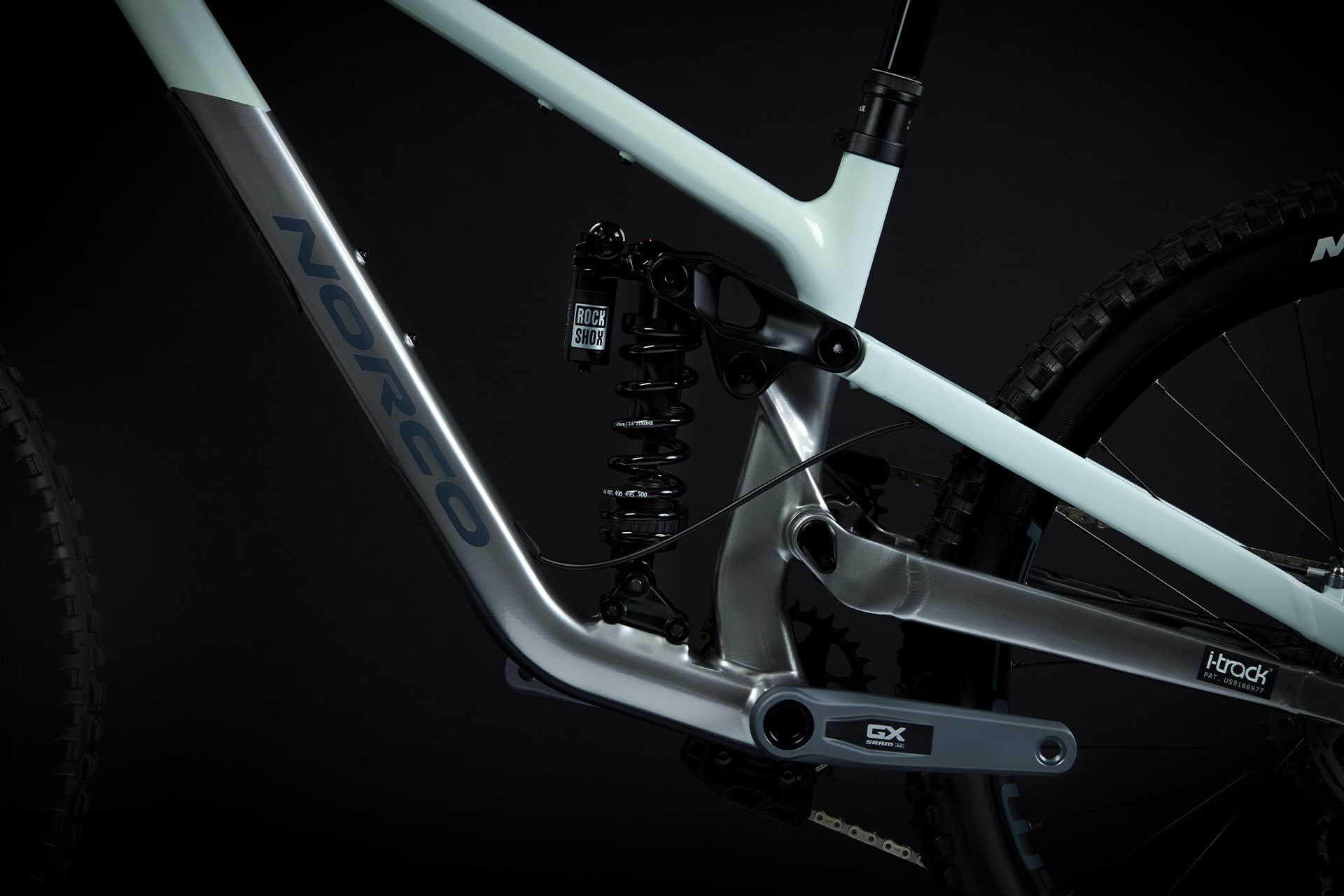

- Rear Shock
- RockShox Super Deluxe Ultimate DH, LINM Tune, Meg Neg Air Can, 185x52.5mm Trunnion

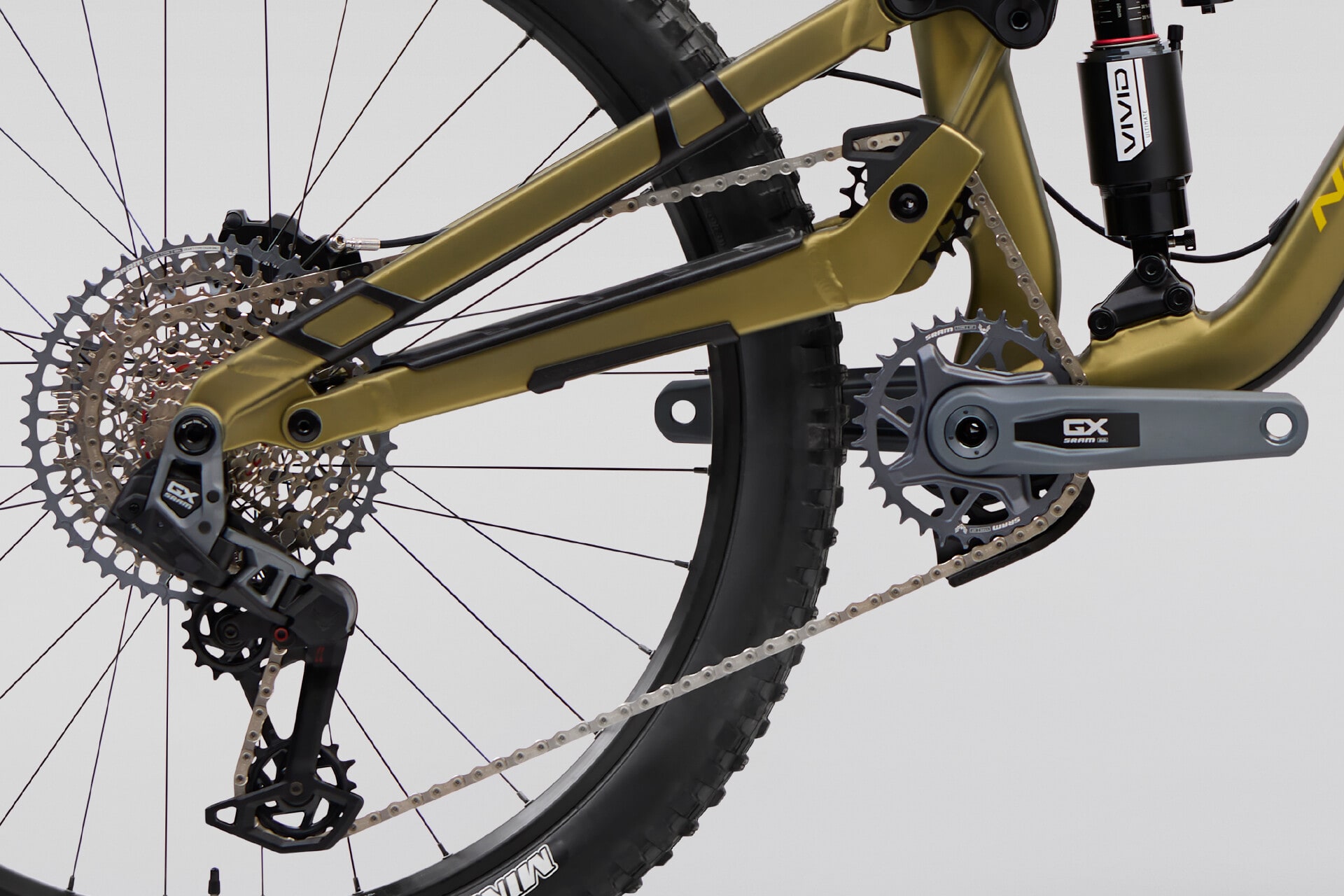

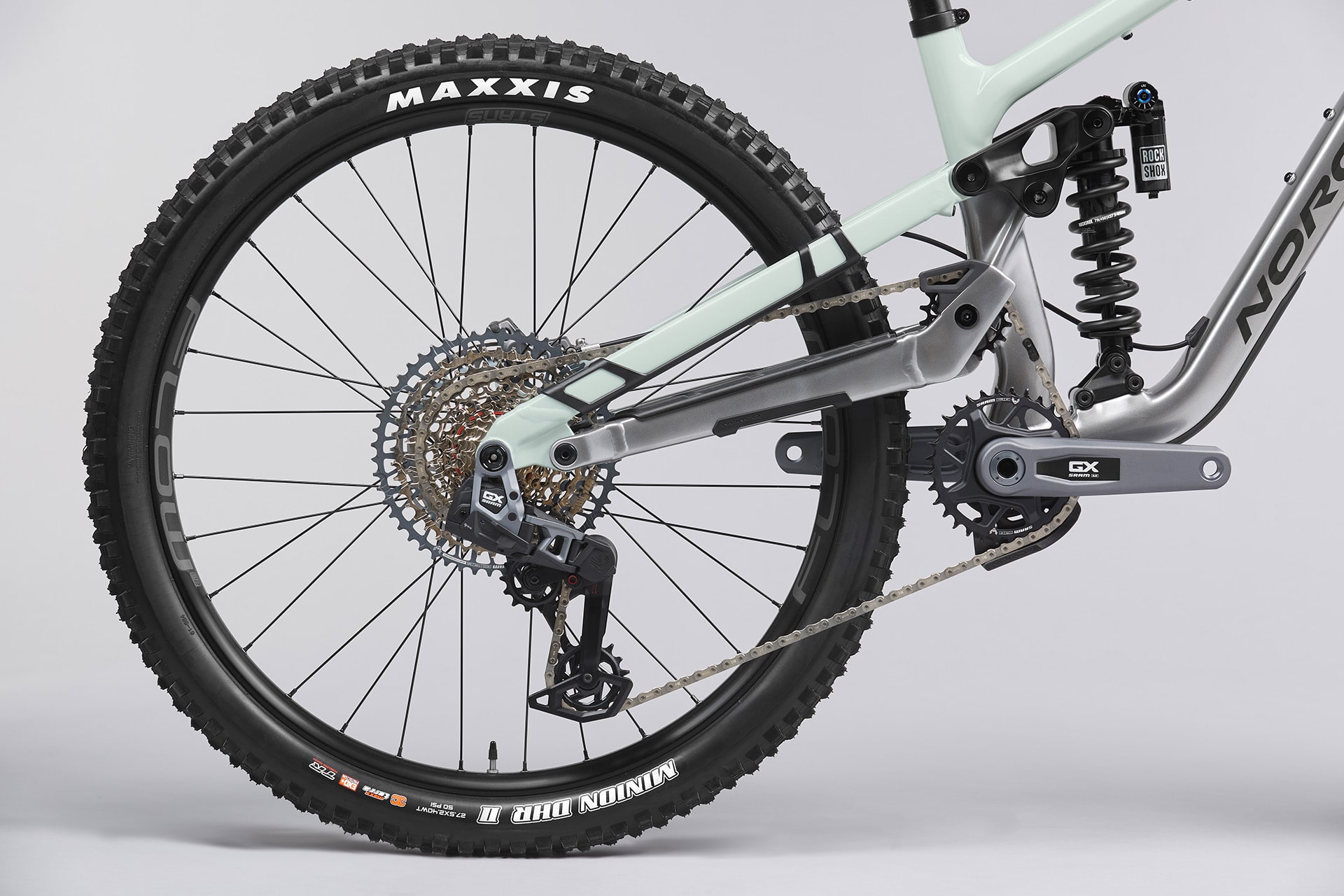

Drivetrain
- Rear Shifter
- SRAM GX Eagle
- Rear Derailleur
- SRAM GX Eagle

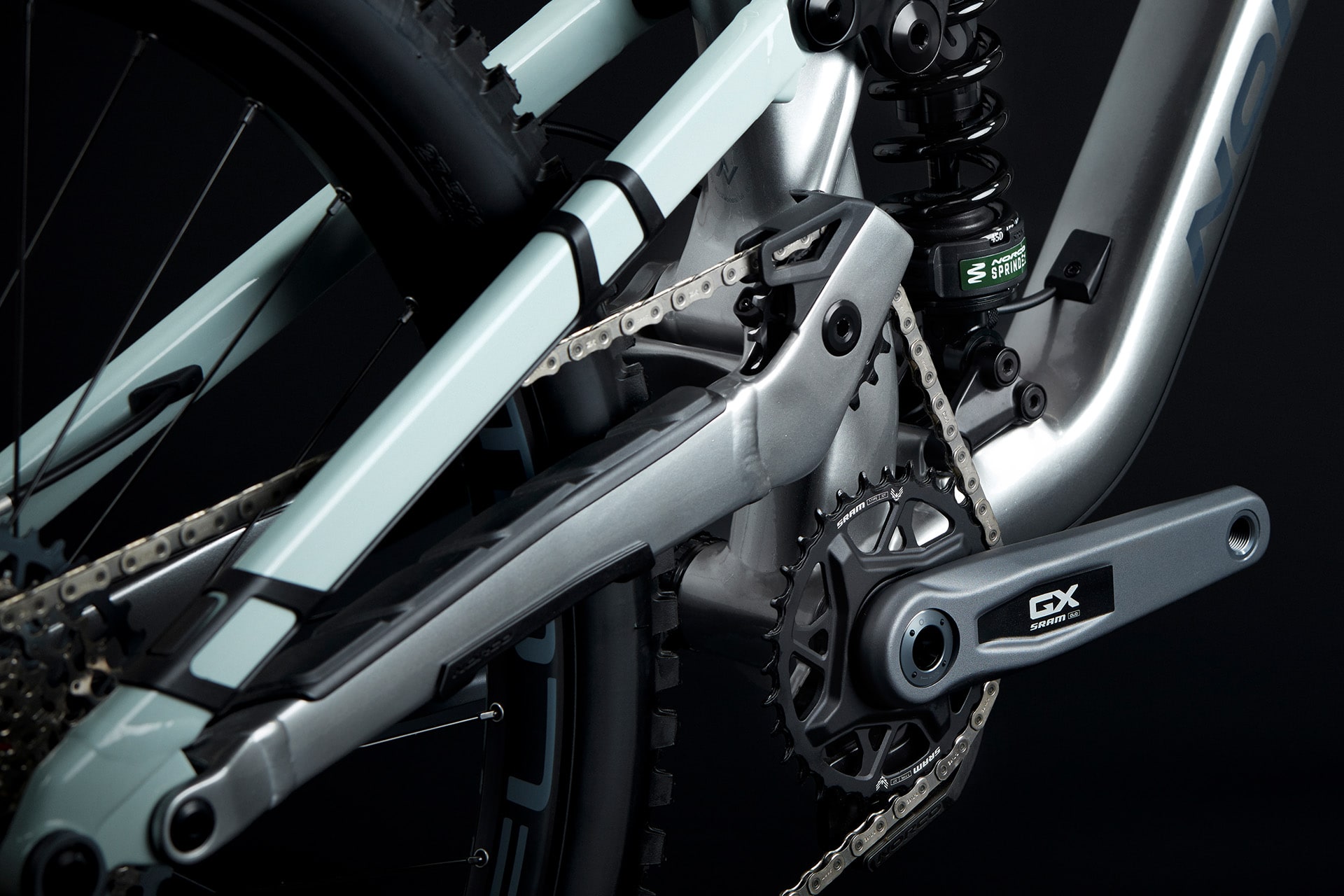

- Crankset
- SRAM GX Eagle, 34T (27.5), 32T (27.5 S), 32T (29), 170mm
- Bottom Bracket
- Sealed Bearing DUB, BSA
- Cassette
- SRAM Eagle XG 1275, 10-52T
- Chain
- SRAM Eagle
- Chain Guide
- e*thirteen Vario Top Guide, DMB
Brakes

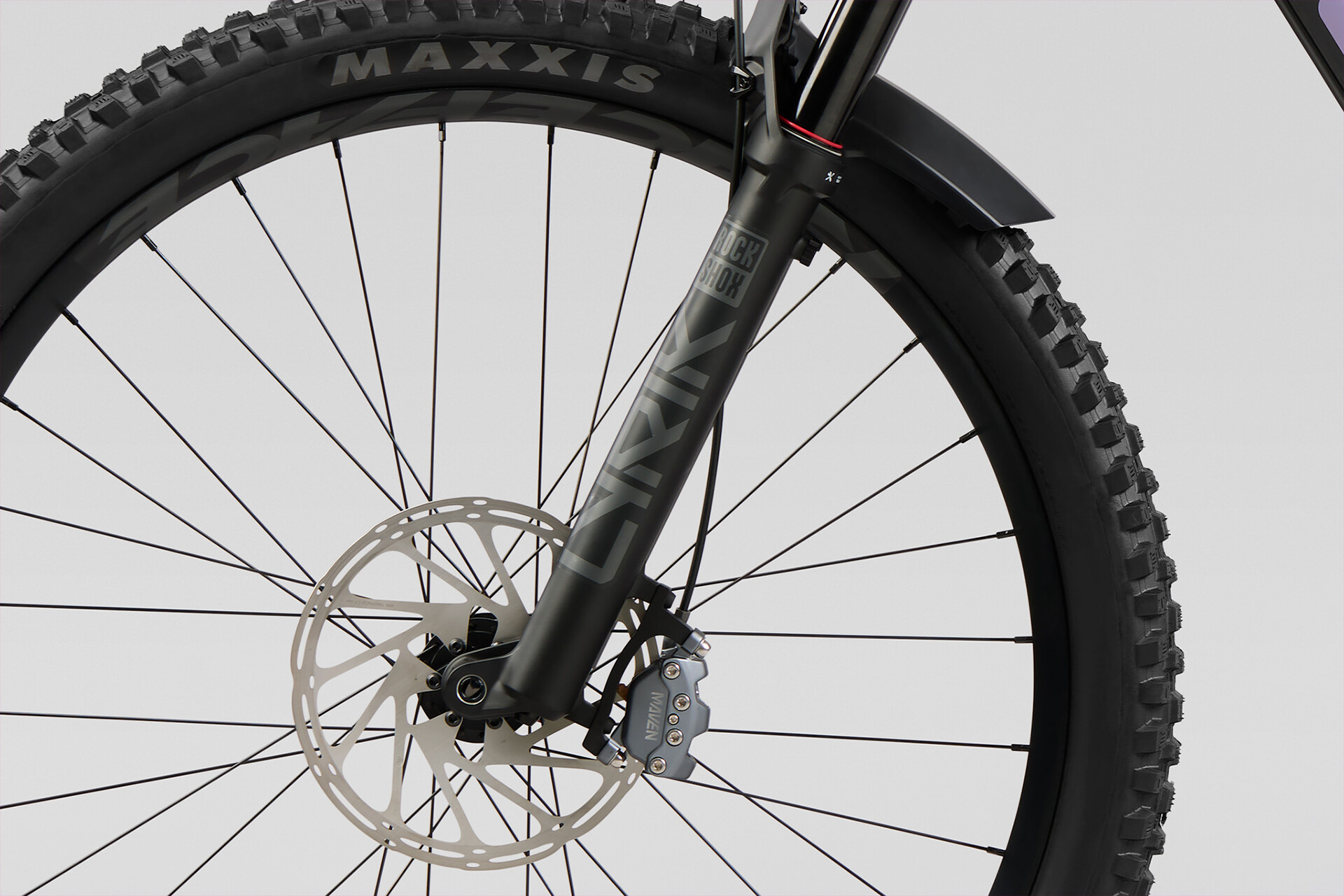

- Front Brake
- SRAM Code RSC, 4 Piston, Metallic Pads
- Front Brake Rotor
- SRAM CenterLine, 200mm
- Rear Brake
- SRAM Code RSC, 4 Piston, Metallic Pads
- Rear Brake Rotor
- SRAM CenterLine, 180mm
- Brake Levers
- SRAM Code RSC
Components

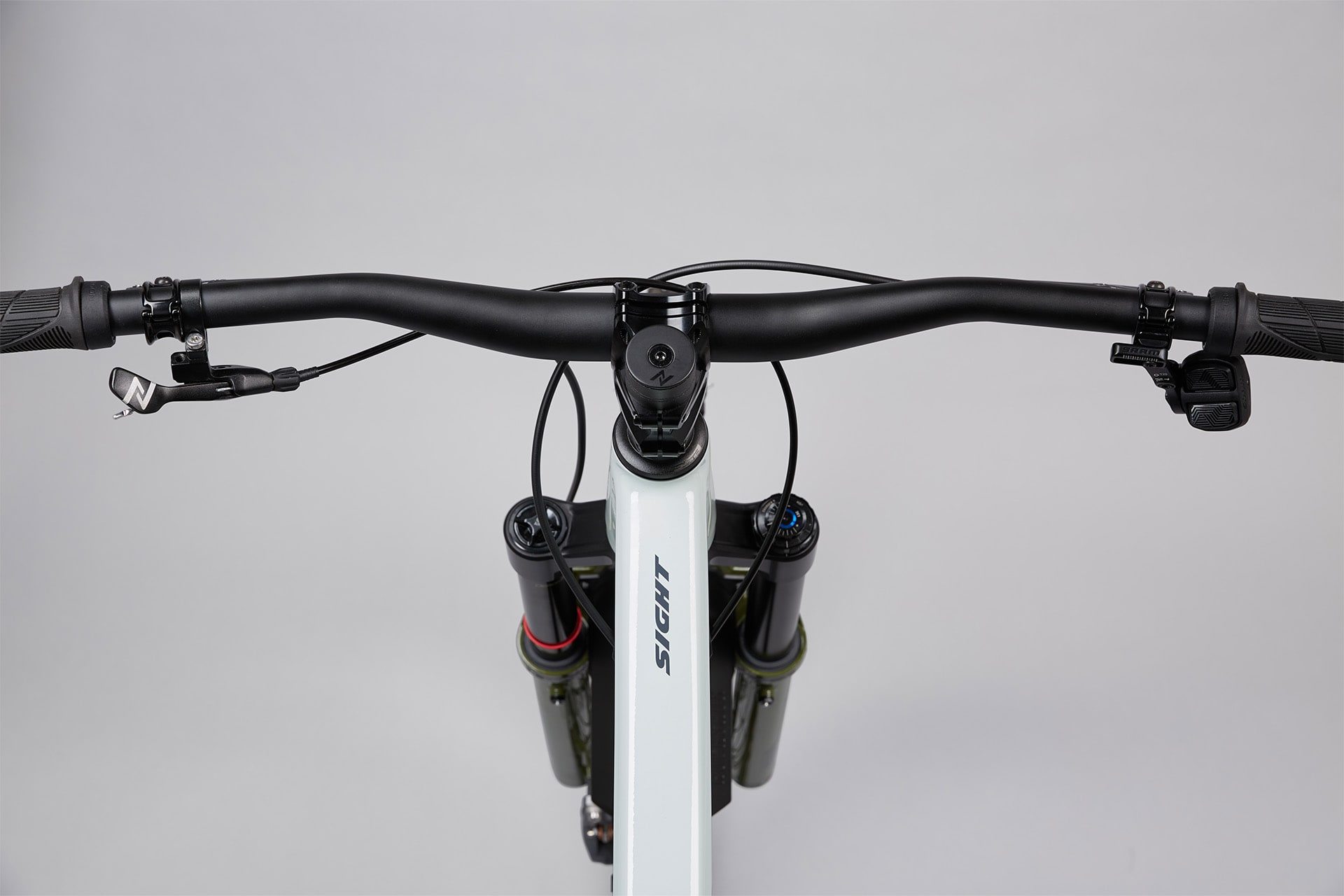

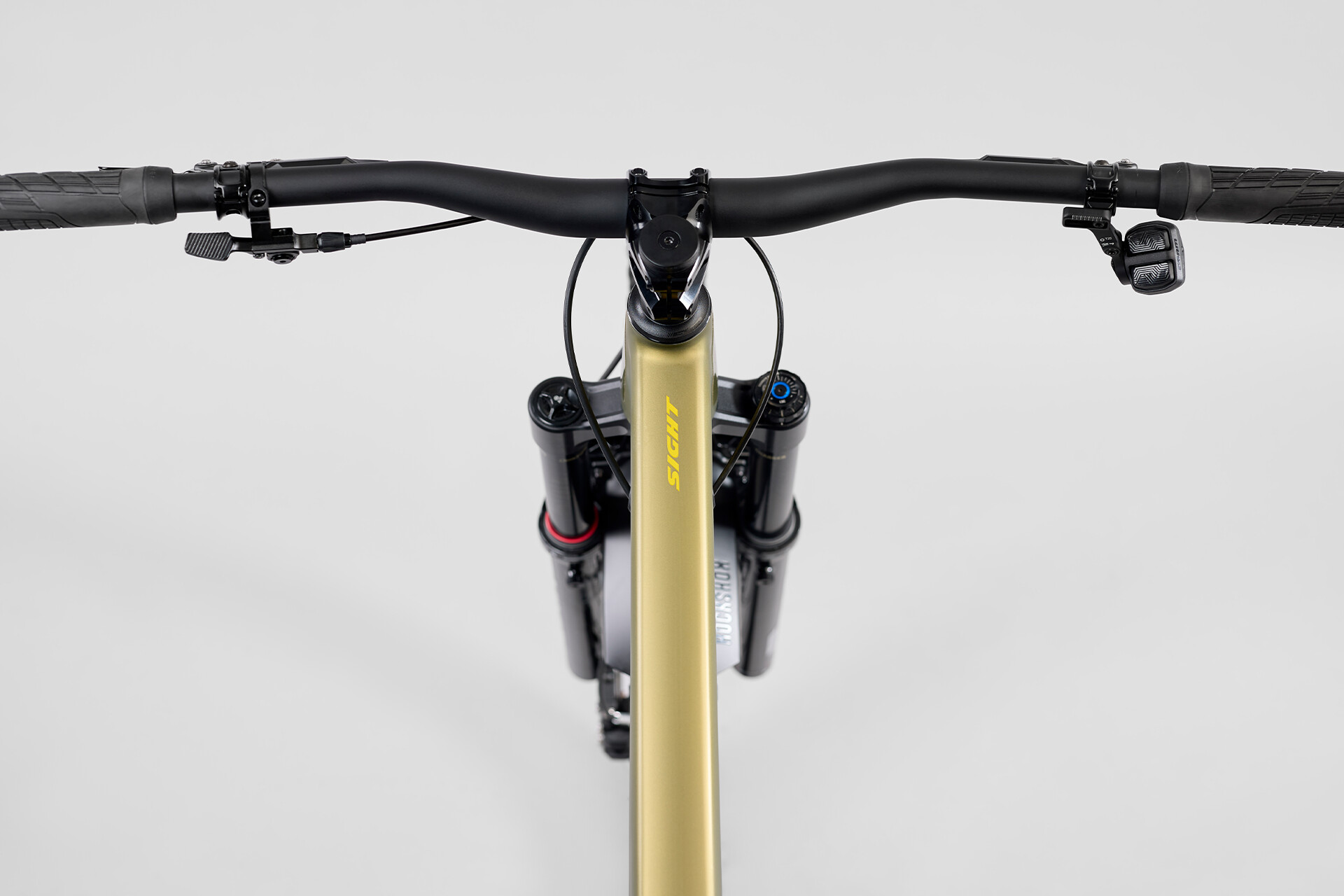

- Handlebar
- Deity Ridgeline, 800mm, 25mm Rise
- Stem
- Alloy, 40mm Length, 35mm Clamp
- Seatpost
- OneUp Adjustable Dropper, 34.9mm, 150mm (S), 180mm (M, L), 210 (XL)
- Headset
- FSA #57 E Sealed Bearing, Tapered
- Saddle
- Fizik Alpaca Terra, Wingflex
- Grips
- DMR DeathGrip Soft, Thin (S, M), Thick (L, XL)
- Seatpost Clamp
- Norco design alloy nutted clamp 38.5mm
Wheels

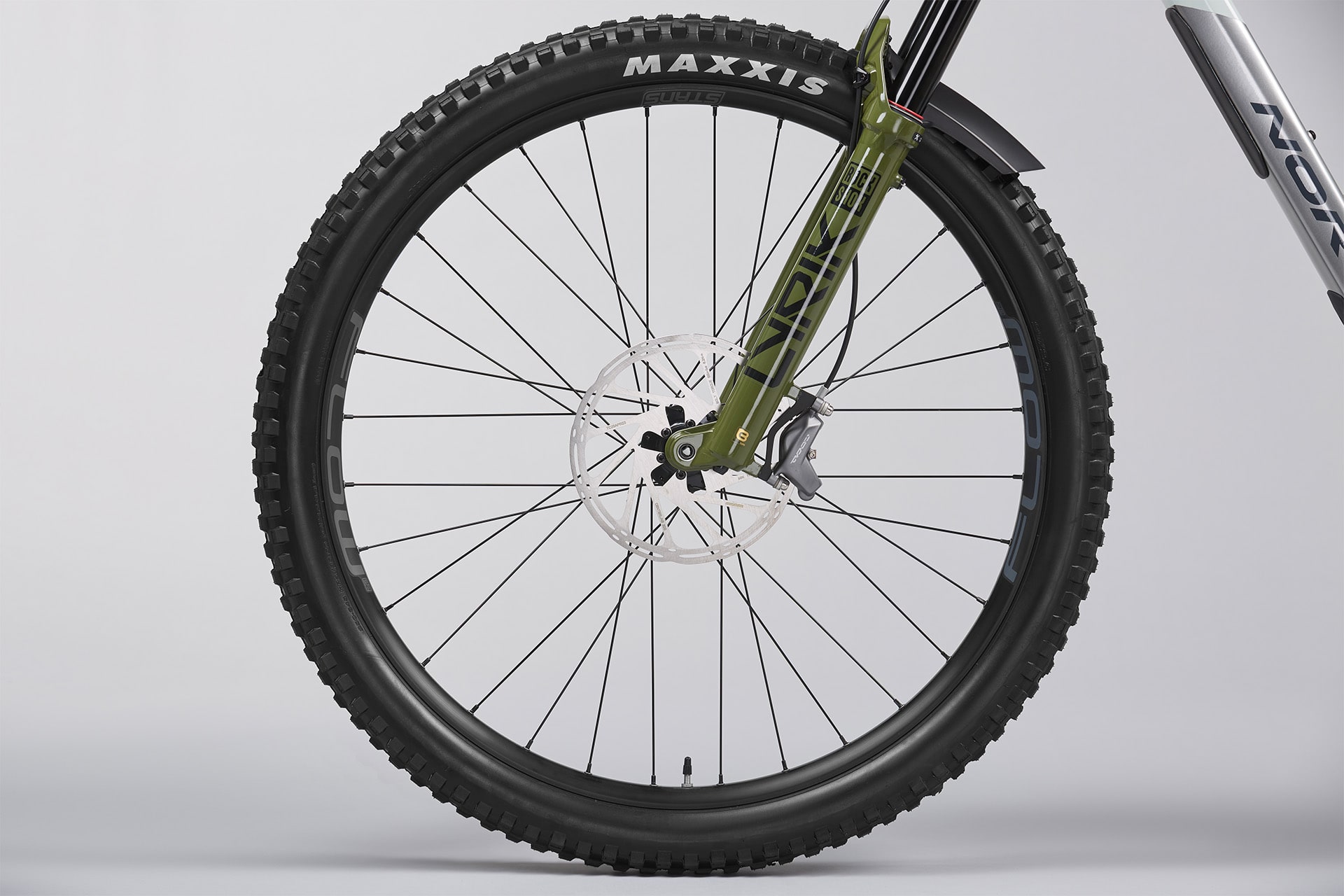

- Front Hub
- DT Swiss 350, 15x110mm Boost, 6 Bolt
- Rear Hub
- DT Swiss 350, 12x148mm Boost, XD, 6 Bolt, 36T Engagement
- Rims
- Stan's Flow S2, 32H
- Front Tire
- Maxxis Assegai 2.5" 3C Maxx Terra/EXO+/TR, Folding
- Rear Tire
- Maxxis Minion DHR II 2.4" WT 3C, Maxx Terra/EXO+/TR, Folding
- Spokes/Nipples
- DT Swiss Competition DB Stainless Black
- Valves
- Stan's 35mm Tubeless Presta
- Sealant
- Stan's - 200ml
Specifications may change and may differ from the photographs. Model year, size and availability confirmed on enquiry.
